Drill Machine Vice
Drill vices having cast iron body, hardened & grinded ‘V’ sloted steel jaws which are fixed by cap screws & having special device for grip duly machined base with lubricating device for easy movement, Acme threaded lead screw of our drill vices are fitted with special design graded casted nut for excellent workmanship and durability.

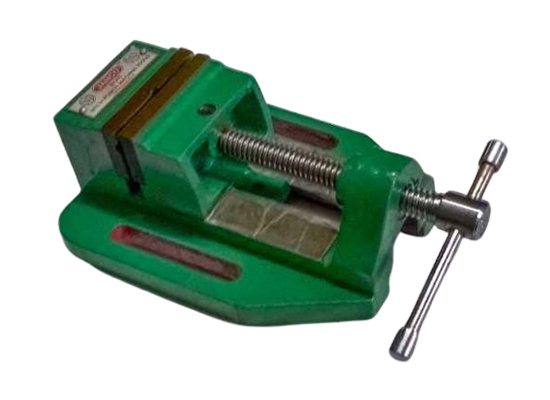

75 MM
Width of Jaw’s : 75 mm
Opening of Jaw’s : 80 mm
Depth of Jaw’s : 45 mm
Size of Base : 195 x 145 mm
Weight of Vice Kg. : 6.000
100 MM
Width of Jaw’s : 100 mm
Opening of Jaw’s : 105 mm
Depth of Jaw’s : 62 mm
Size of Base : 240 x 190 mm
Weight of Vice Kg. : 10.400

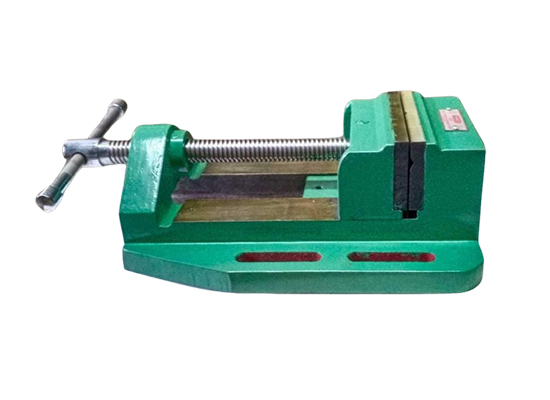

150 MM
Width of Jaw’s : 150 mm
Opening of Jaw’s : 155 mm
Depth of Jaw’s : 68 mm
Size of Base : 303 x 240 mm
Weight of Vice Kg. : 19.700

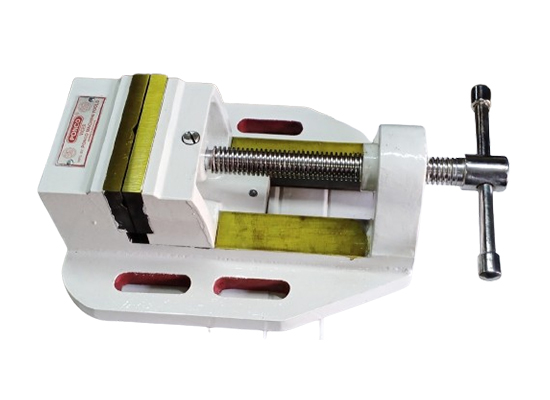

M100 Jamco SGI Drill Vice
Note:
Specification and design are subject to changes without prior notice Subject to Ahmedabad jurisdiction.
